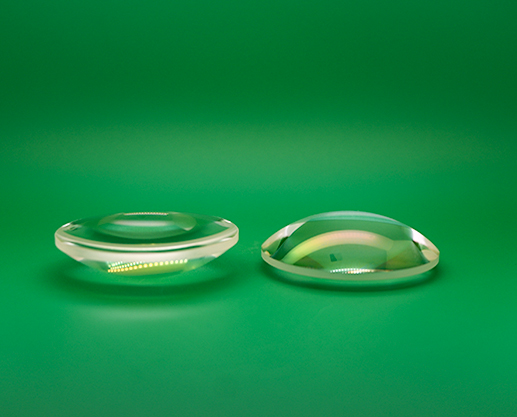

AR Coating 750-1500nm Double-Convex Lenses
AR Coating 750-1500nm Double-Convex Lenses
CLZ Optical Co., Ltd. provides biconvex lenses with AR coating in the 750-1500nm band, which are designed to improve optical performance in the infrared to near-infrared spectral range. With its unique biconvex structure, this lens can not only effectively focus light from this specific band, but also greatly reduce the reflection loss of light on the lens surface through precise anti-reflection (AR) coating technology, thereby ensuring efficient transmission and utilization of optical signals. In addition, CLZ uses high-quality optical materials such as low-dispersion optical glass to ensure that the lens has excellent thermal stability and mechanical strength, and can maintain stable performance in harsh environments. CLZ's AR-coated biconvex lenses are mainly used in high-tech fields such as infrared technology, remote sensing detection, and medical diagnosis.
We launched Online Stock for you to find a product that meets your needs!
Contáctenos para obtener descuentos en piezas en stock superiores a 10 unidades y cantidades por volumen/OEM.
| N.º de tipo | Ficha técnica | Material | Diameter (mm) | Coating | EFL (mm) | CT (mm) | |
|---|---|---|---|---|---|---|---|
| L‐DX0060750100 | PDF > | BK7 or equivalent | 100.00 | BBAR Ravg<0.5% AT 750-1500nm | 750.00 | 8.20 | |
| L‐DX0060200100 | PDF > | BK7 or equivalent | 100.00 | BBAR Ravg<0.5% AT 750-1500nm | 200.00 | 16.30 | |
| L‐DX0060100100 | PDF > | BK7 or equivalent | 100.00 | BBAR Ravg<0.5% AT 750-1500nm | 100.00 | 32.70 | |
| L‐DX006075076Z | PDF > | BK7 or equivalent | 76.20 | BBAR Ravg<0.5% AT 750-1500nm | 750.00 | 5.30 | |
| L‐DX006010076Z | PDF > | BK7 or equivalent | 76.20 | BBAR Ravg<0.5% AT 750-1500nm | 100.00 | 18.05 | |
| L‐DX0060750075 | PDF > | BK7 or equivalent | 75.00 | BBAR Ravg<0.5% AT 750-1500nm | 750.00 | 5.30 | |
| L‐DX0060064040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 64.00 | 8.30 | |
| L‐DX006012525Z | PDF > | BK7 or equivalent | 25.40 | BBAR Ravg<0.5% AT 750-1500nm | 125.00 | 4.25 | |
| L-DX006005012Y | PDF > | BK7 or equivalent | 12.50 | BBAR Ravg<0.5% AT 750-1500nm | 50.00 | 2.30 |
