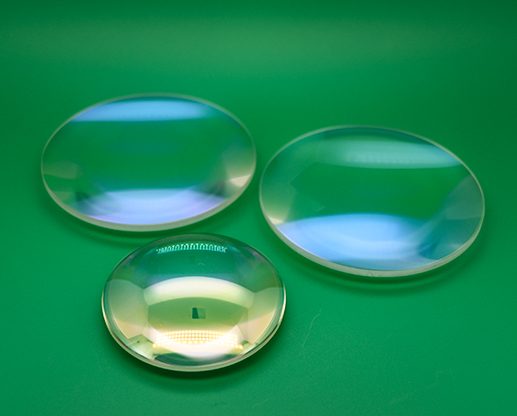

AR Coating 750-1500nm Plano-Convex Lenses
AR Coating 750-1500nm Plano-Convex Lenses
Our plano-convex lenses are coated with a wavelength range of 750-1500nm, which covers part of the visible, near-infrared, and mid-infrared wavelength ranges, and is an important wavelength band in many optical systems and applications. By applying AR coatings, the light reflection in this band can be significantly reduced and the transmittance of the lens can be improved, allowing more light energy to pass through the lens and meeting the design requirements of the optical system. The application of anti-reflective AR coatings for plano-convex lenses in the 750-1500nm band is mainly aimed at reducing light reflection in this band and improving the lens's light transmission and the optical system's overall efficiency.
Please check out our Online Stock to find a product that meets your needs!
Contáctenos para obtener descuentos en piezas en stock superiores a 10 unidades y cantidades por volumen/OEM.
| N.º de tipo | Ficha técnica | Material | Diameter (mm) | Coating | EFL (mm) | CT (mm) | |
|---|---|---|---|---|---|---|---|
| L-PX0060500040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 500.00 | 5.00 | |
| L-PX0060500035 | PDF > | BK7 or equivalent | 35.00 | BBAR Ravg<0.5% AT 750-1500nm | 500.00 | 5.00 | |
| L-PX0060400040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 400.00 | 5.00 | |
| L-PX0060400035 | PDF > | BK7 or equivalent | 35.00 | BBAR Ravg<0.5% AT 750-1500nm | 400.00 | 5.00 | |
| L-PX0060300040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 300.00 | 5.00 | |
| L-PX0060300035 | PDF > | BK7 or equivalent | 35.00 | BBAR Ravg<0.5% AT 750-1500nm | 300.00 | 5.00 | |
| L-PX0060250040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 250.00 | 5.00 | |
| L-PX0060250035 | PDF > | BK7 or equivalent | 35.00 | BBAR Ravg<0.5% AT 750-1500nm | 250.00 | 5.00 | |
| L-PX0060200035 | PDF > | BK7 or equivalent | 35.00 | BBAR Ravg<0.5% AT 750-1500nm | 200.00 | 5.00 | |
| L-PX0060150040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 150.00 | 5.00 | |
| L-PX0060150035 | PDF > | BK7 or equivalent | 35.00 | BBAR Ravg<0.5% AT 750-1500nm | 150.00 | 5.00 | |
| L-PX0060125040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 125.00 | 7.00 | |
| L-PX0060125035 | PDF > | BK7 or equivalent | 35.00 | BBAR Ravg<0.5% AT 750-1500nm | 125.00 | 7.00 | |
| L-PX0060100035 | PDF > | BK7 or equivalent | 35.00 | BBAR Ravg<0.5% AT 750-1500nm | 100.00 | 7.00 | |
| L-PX006050076Z | PDF > | BK7 or equivalent | 76.20 | BBAR Ravg<0.5% AT 750-1500nm | 500.00 | 8.00 | |
| L-PX0060500075 | PDF > | BK7 or equivalent | 75.00 | BBAR Ravg<0.5% AT 750-1500nm | 500.00 | 8.00 | |
| L-PX006050050Z | PDF > | BK7 or equivalent | 50.80 | BBAR Ravg<0.5% AT 750-1500nm | 500.00 | 5.50 | |
| L-PX0060500050 | PDF > | BK7 or equivalent | 50.00 | BBAR Ravg<0.5% AT 750-1500nm | 500.00 | 5.50 | |
| L-PX006050038Z | PDF > | BK7 or equivalent | 38.10 | BBAR Ravg<0.5% AT 750-1500nm | 500.00 | 5.00 | |
| L-PX006040076Z | PDF > | BK7 or equivalent | 76.20 | BBAR Ravg<0.5% AT 750-1500nm | 400.00 | 8.00 | |
| L-PX0060400075 | PDF > | BK7 or equivalent | 75.00 | BBAR Ravg<0.5% AT 750-1500nm | 400.00 | 8.00 | |
| L-PX006040050Z | PDF > | BK7 or equivalent | 50.80 | BBAR Ravg<0.5% AT 750-1500nm | 400.00 | 5.50 | |
| L-PX0060400050 | PDF > | BK7 or equivalent | 50.00 | BBAR Ravg<0.5% AT 750-1500nm | 400.00 | 5.50 | |
| L-PX006040038Z | PDF > | BK7 or equivalent | 38.10 | BBAR Ravg<0.5% AT 750-1500nm | 400.00 | 5.00 | |
| L-PX006030076Z | PDF > | BK7 or equivalent | 76.20 | BBAR Ravg<0.5% AT 750-1500nm | 300.00 | 8.00 | |
| L-PX0060300075 | PDF > | BK7 or equivalent | 75.00 | BBAR Ravg<0.5% AT 750-1500nm | 300.00 | 8.00 | |
| L-PX006030050Z | PDF > | BK7 or equivalent | 50.80 | BBAR Ravg<0.5% AT 750-1500nm | 300.00 | 5.50 | |
| L-PX0060300050 | PDF > | BK7 or equivalent | 50.00 | BBAR Ravg<0.5% AT 750-1500nm | 300.00 | 5.50 | |
| L-PX006030038Z | PDF > | BK7 or equivalent | 38.10 | BBAR Ravg<0.5% AT 750-1500nm | 300.00 | 5.00 | |
| L-PX006025076Z | PDF > | BK7 or equivalent | 76.20 | BBAR Ravg<0.5% AT 750-1500nm | 250.00 | 8.00 | |
| L-PX0060250075 | PDF > | BK7 or equivalent | 75.00 | BBAR Ravg<0.5% AT 750-1500nm | 250.00 | 8.00 | |
| L-PX006025050Z | PDF > | BK7 or equivalent | 50.80 | BBAR Ravg<0.5% AT 750-1500nm | 250.00 | 5.50 | |
| L-PX0060250050 | PDF > | BK7 or equivalent | 50.00 | BBAR Ravg<0.5% AT 750-1500nm | 250.00 | 5.50 | |
| L-PX006025038Z | PDF > | BK7 or equivalent | 38.10 | BBAR Ravg<0.5% AT 750-1500nm | 250.00 | 5.00 | |
| L-PX006020076Z | PDF > | BK7 or equivalent | 76.20 | BBAR Ravg<0.5% AT 750-1500nm | 200.00 | 11.00 | |
| L-PX0060200075 | PDF > | BK7 or equivalent | 75.00 | BBAR Ravg<0.5% AT 750-1500nm | 200.00 | 11.00 | |
| L-PX006020050Z | PDF > | BK7 or equivalent | 50.80 | BBAR Ravg<0.5% AT 750-1500nm | 200.00 | 7.00 | |
| L-PX0060200050 | PDF > | BK7 or equivalent | 50.00 | BBAR Ravg<0.5% AT 750-1500nm | 200.00 | 7.00 | |
| L-PX9060200040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 200.00 | 3.90 | |
| L-PX0060200040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 200.00 | 40.00 | |
| L-PX006020038Z | PDF > | BK7 or equivalent | 38.10 | BBAR Ravg<0.5% AT 750-1500nm | 200.00 | 5.00 | |
| L-PX006015076Z | PDF > | BK7 or equivalent | 76.20 | BBAR Ravg<0.5% AT 750-1500nm | 150.00 | 14.00 | |
| L-PX0060150075 | PDF > | BK7 or equivalent | 75.00 | BBAR Ravg<0.5% AT 750-1500nm | 150.00 | 14.00 | |
| L-PX006015050Z | PDF > | BK7 or equivalent | 50.80 | BBAR Ravg<0.5% AT 750-1500nm | 150.00 | 9.00 | |
| L-PX0060150050 | PDF > | BK7 or equivalent | 50.00 | BBAR Ravg<0.5% AT 750-1500nm | 150.00 | 9.00 | |
| L-PX006015038Z | PDF > | BK7 or equivalent | 38.10 | BBAR Ravg<0.5% AT 750-1500nm | 150.00 | 5.00 | |
| L-PX006012550Z | PDF > | BK7 or equivalent | 50.80 | BBAR Ravg<0.5% AT 750-1500nm | 125.00 | 10.00 | |
| L-PX0060125050 | PDF > | BK7 or equivalent | 50.00 | BBAR Ravg<0.5% AT 750-1500nm | 125.00 | 10.00 | |
| L-PX006012538Z | PDF > | BK7 or equivalent | 38.10 | BBAR Ravg<0.5% AT 750-1500nm | 125.00 | 7.00 | |
| L-PX006010050Z | PDF > | BK7 or equivalent | 50.80 | BBAR Ravg<0.5% AT 750-1500nm | 100.00 | 10.00 | |
| L-PX0060100050 | PDF > | BK7 or equivalent | 50.00 | BBAR Ravg<0.5% AT 750-1500nm | 100.00 | 10.00 | |
| L-PX0060100040 | PDF > | BK7 or equivalent | 40.00 | BBAR Ravg<0.5% AT 750-1500nm | 100.00 | 7.00 | |
| L-PX006010038Z | PDF > | BK7 or equivalent | 38.10 | BBAR Ravg<0.5% AT 750-1500nm | 100.00 | 7.00 |
Comprar por
Categorías relacionadas
CLZ Optical Co., Ltd - AR Coated Plano-Convex Lenses for the 750-1500nm Range (NIR II Region)
Applications of AR Coated Plano-Convex Lenses in the 750-1500nm Range
Our AR coated plano-convex lenses for the 750-1500nm range, covering the NIR II (Near-Infrared II) region, are designed to offer superior optical performance tailored to a wide range of applications. These lenses are ideal for:
l Advanced Imaging Systems: Enhancing the clarity and resolution of images captured in scientific and medical imaging systems, including those used in preclinical research and diagnostics.
l Optical Instrumentation: Utilized in spectral analyzers, sensors, and other optical devices to improve measurement accuracy and reliability.
l Laser-Based Applications: Ideal for beam shaping, focusing, and collimation in laser systems operating within this wavelength range.
l Photovoltaic and Solar Energy: Supporting the development of new technologies in photovoltaic cells and solar energy harvesting by improving light capture and transmission.
Customization Services
In addition to our standard AR coated plano-convex lenses for the 750-1500nm range, CLZ Optical Co., Ltd provides comprehensive customization services. Our experienced team can design and manufacture optical lenses tailored to your specific requirements, ensuring optimal performance in your application.
